FBS-06P |
||
|---|---|---|
| Part Number | 45-FBS06 | |

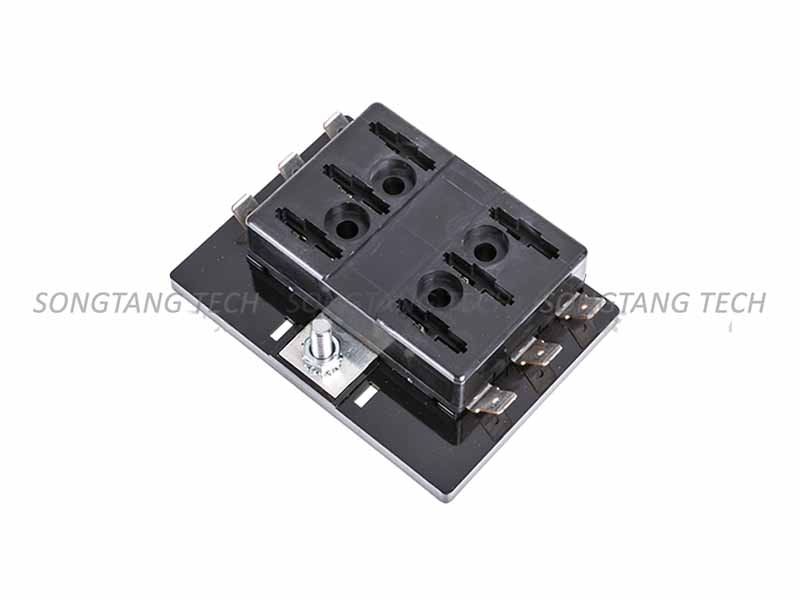

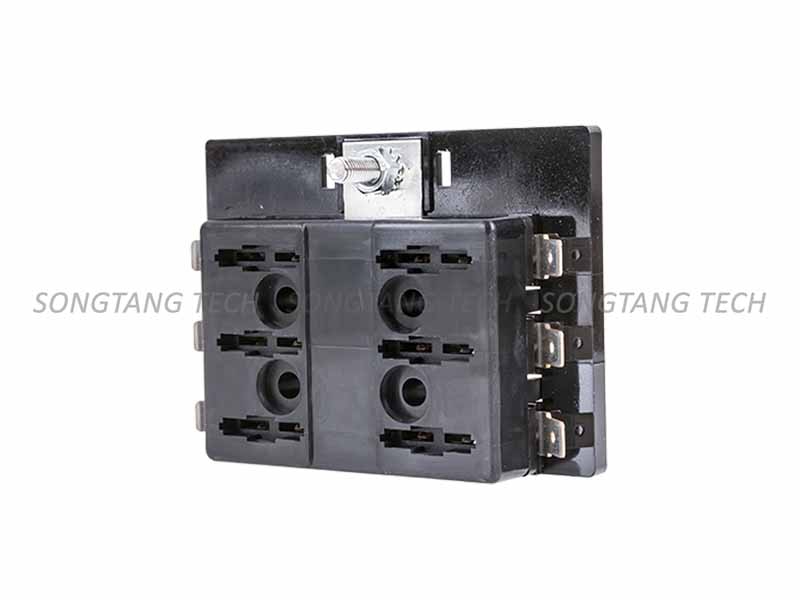

| Description | The ATCFB (ATC Blade-Type Fuse Blocks) is a compact power distribution module.It is available in a single or dual internal buss eletrical configuration. It is surface mounted, uses convenient quick connect terminals. | |
| Family | Accessories | |
| Category | Fuse Block | |
| Series | ATCFB | |
| Mounting | Torque Rating 8 in-lbs (0.9NM) max | |
| Operating Temperature | –20°F (0°C) to 150°F (65°C) | |
| Dimension | 62.74 x 85.59 (2.47" x 3.37") | |
| Input | #10-32 Threaded studs (100A Max) | |
| Output | 30A Max per circuit | |
| Termination | 0.250" x 0.032" quick-connect terminals | |
| Body Color | Black, UL rated 94V0 Thermoplastic | |
| Numberof Positions | 6 | |
62.74 x 85.59 (2.47" x 3.37")
