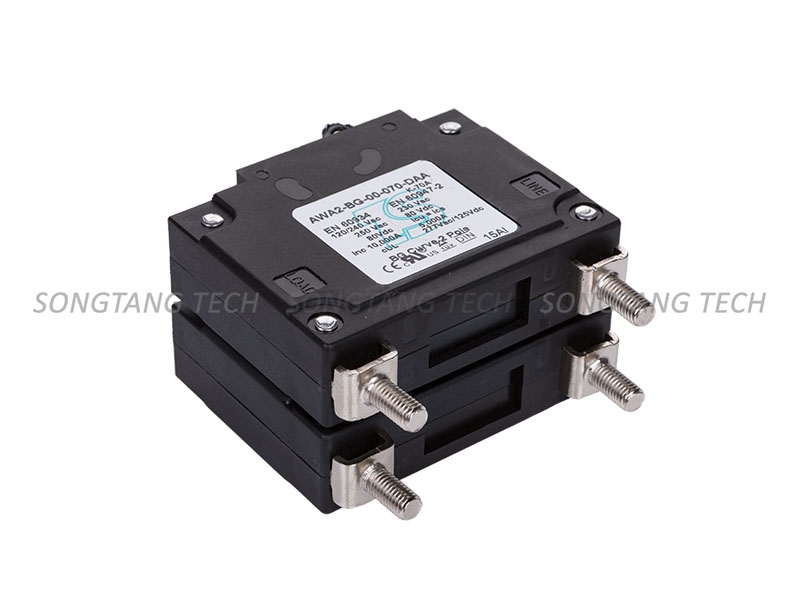

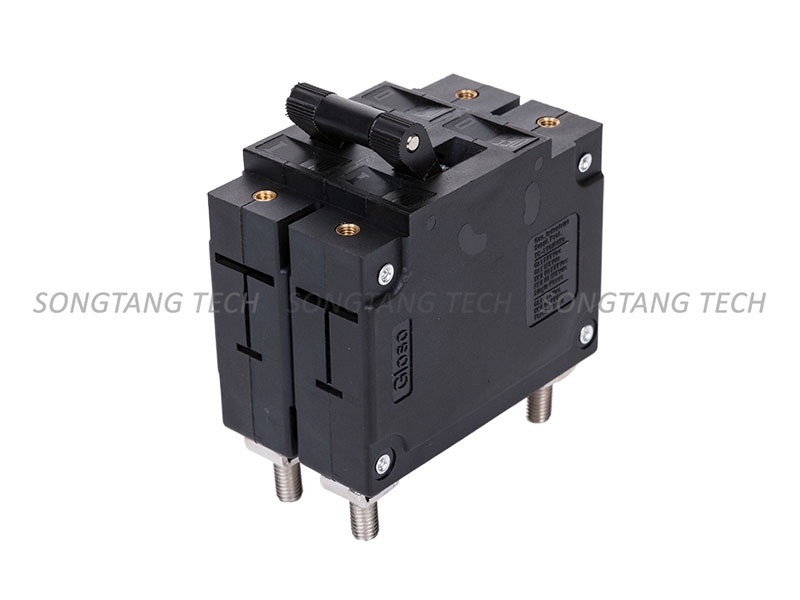

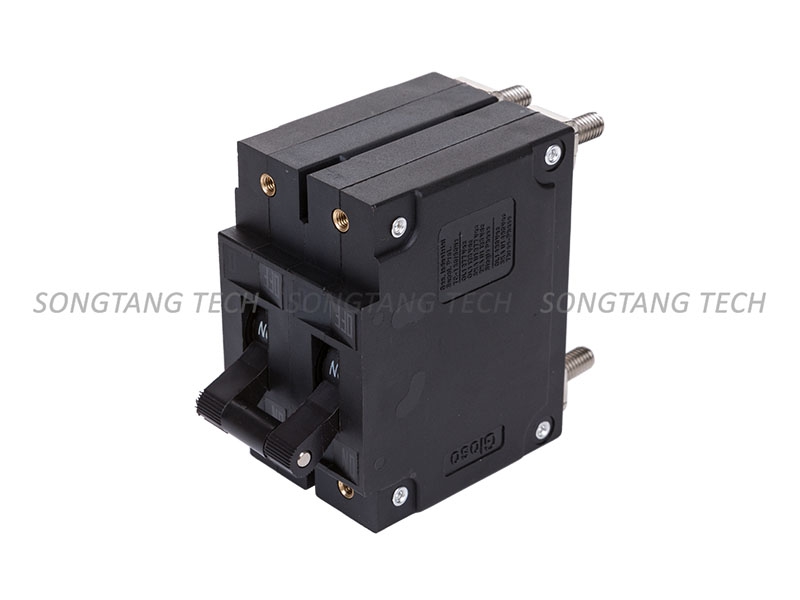

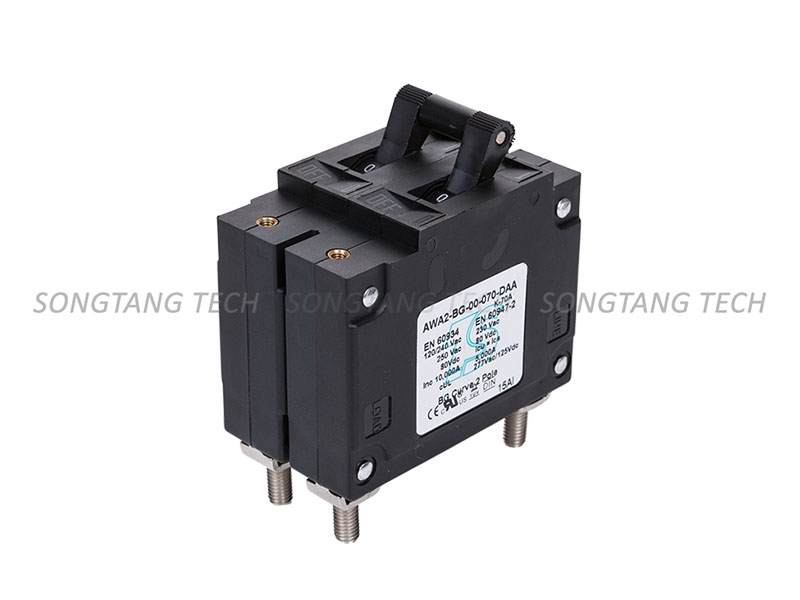

A Type - 2 Poles |
||
|---|---|---|
| Part Number | A2P | |
| Description | Hydraulic Magnetic Circuit Protector (Oil Circuit Breaker) | |
| Family | Hydraulic Magnetic Circuit Protector (Oil Circuit Breaker) | |
| Category | A Type | |
| Series | A2P | |
| Voltage | 125/250/277/415/480 Vac; 65/80/125 Vdc | |
| Rated Current | 1-100 Amp | |
| Mounting | Rear Mounted, Snap-in Front Panel | |
| Reset Type | Instantaneous, Short, Medium and Long Delay | |
| Operating Temperature | -40ºC (-40ºF) to 85ºC (185ºF) | |
| Interrupt Capacity |
10,000A (PC1) 5,000A @ 277 Vac (SC) 2,000A @ 125 Vdc (SC) |
|
| Regulatory Compliance Summary | cUL1077; EN60934; EN60947; DIN; CE | |
| Termination | M5, M6 Studs, Fuse Clip, #6-32 Stainless Steel | |
A Type - Single Pole
Rated Current: 1-100 Amp
Voltage: 125/250/277/415/480 Vac; 65/80/125 Vdc
Reset Type: Instantaneous, Short, Medium and Long Delay
A Type - Switch Only
Rated Current: 1-100 Amp
Voltage: 125/250/277/415/480 Vac; 65/80/125 Vdc
Reset Type: Instantaneous, Short, Medium and Long Delay
A Type - 3 Poles
Rated Current: 1-100 Amp
Voltage: 125/250/277/415/480 Vac; 65/80/125 Vdc
Reset Type: Instantaneous, Short, Medium and Long Delay
A4P
Rated Current: 1-100 Amp
Voltage: 125/250/277/415/480 Vac; 65/80/125 Vdc
Reset Type: Instantaneous, Short, Medium and Long Delay
A Type - 2 Poles
Rated Current: 1-100 Amp
Voltage: 125/250/277/415/480 Vac; 65/80/125 Vdc
Reset Type: Instantaneous, Short, Medium and Long Delay
