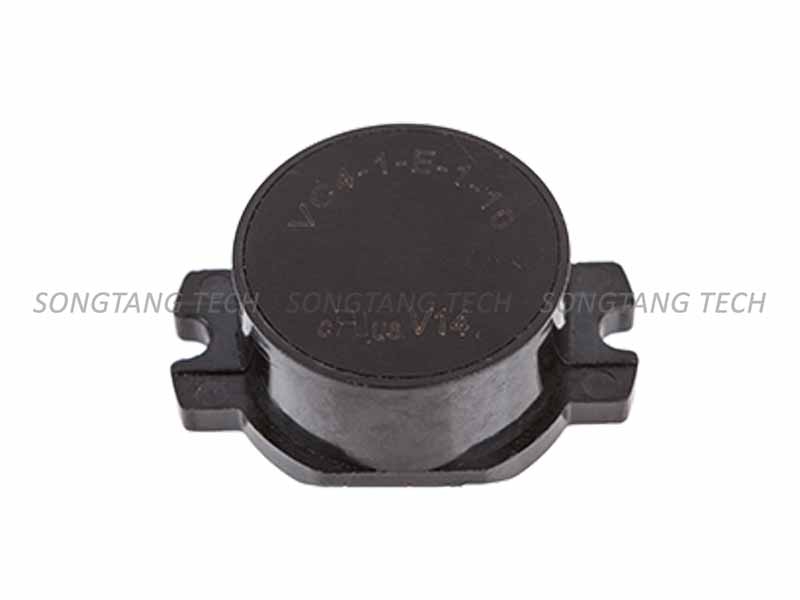

VC4-1 |
||
|---|---|---|
| Part Number | VC4-1 | |
| Description | VC4 Series is a snap action motor protector with conductive bimetal construction. Automatic or manual reset is available, which VC can be used in single or dual voltage type motor. | |
| Family | Motor Protector | |
| Voltage | 120Vac/250Vac | |
| Reset Type | Auto Reset | |
| Termination | Hook/Straight Terminals | |
| Rating |
34 Amps @ 120 Vac 17 Amps @ 250 Vac |
|
| Open Temperature | 90°C to 50°C | |
| Temperature Tolerance | ±5°C | |
VC4-1
Voltage: 120Vac/250Vac
Reset Type: Auto Reset
