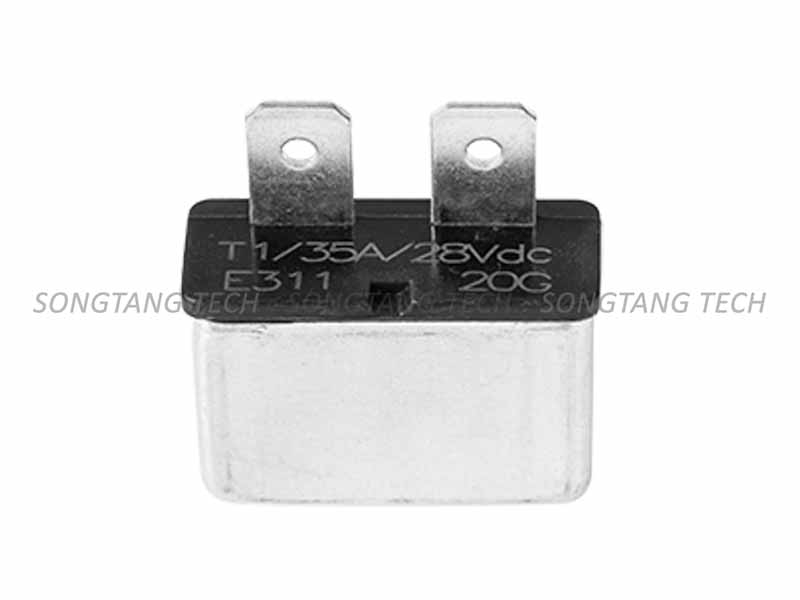

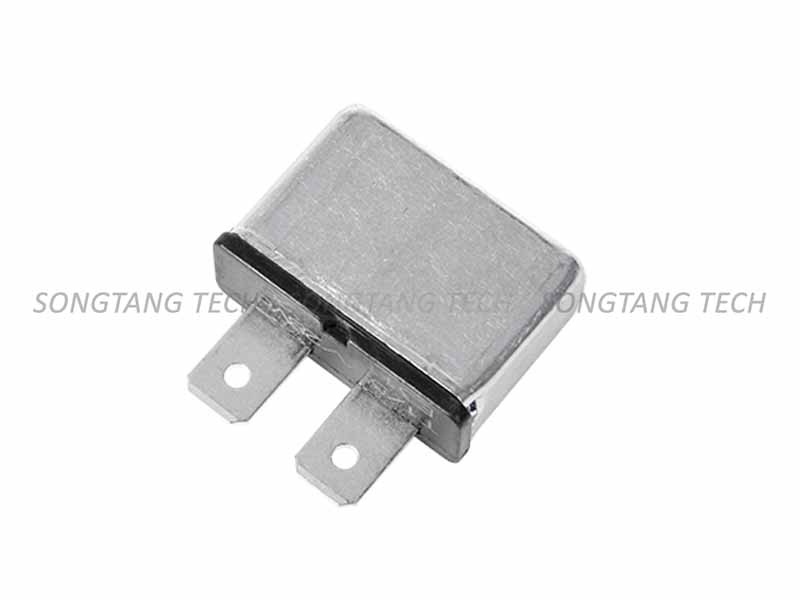

E311-82 |
||
|---|---|---|
| Part Number | E311-30-82-01 | |
| Description |
E3 Circuit Protector (Breaker), Thermal Protector SAE Type 1 Circuit Protector (Breaker) In-Battery Circuit Protector (Breaker) |
|
| Family | Thermal Circuit Protector (Breaker) | |
| Category | E3 | |
| Series | E311 | |
| Voltage | 28Vdc* | |
| Rated Current | 30A | |
| Reset Type | T1, Auto Reset | |
| Operating Temperature | -40ºC (-40ºF) to 85ºC (185ºF) | |

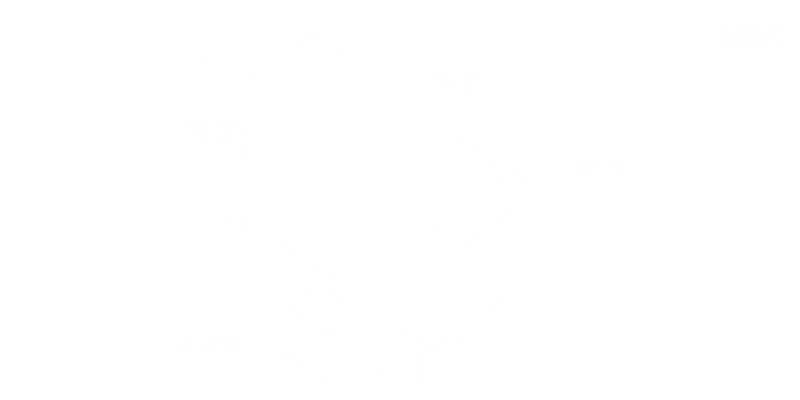

| Dimension |
Length: 25.2 Width: 10.0 Height: 27.3 Unit: mm |
|
| Weight | 6 g | |
| RoHS | Y | |
| Standard Pack | 1500 | |
| Termination | QC Terminals | |
| Body | Aluminium | |
Length: 25.2
Width: 10.0
Height: 27.3
Unit: mm
E311-43
Rated Current: 15A
Voltage: 14Vdc
Reset Type: T1, Auto Reset
E311-82
Rated Current: 30A
Voltage: 28Vdc*
Reset Type: T1, Auto Reset
E311-44
Rated Current: 10A
Voltage: 14Vdc
Reset Type: T1, Auto Reset
E321-45
Rated Current: 25A
Voltage: 14Vdc
Reset Type: T2, Modified Reset
E321-43
Rated Current: 5A
Voltage: 14Vdc
Reset Type: T2, Modified Reset
E312-42
Rated Current: 20A
Voltage: 14Vdc
Reset Type: T1, Auto Reset
