E321-43 |
||
|---|---|---|
| Part Number | E321-05-43-00 | |
| Description |
SAE Type 2 Circuit Protector (Breaker) UCB 3 Sections Terminals |
|
| Family | Thermal Circuit Protector (Breaker) | |
| Category | E3 | |
| Series | E321 | |
| Voltage | 14Vdc | |
| Rated Current | 5A | |
| Reset Type | T2, Modified Reset | |
| Operating Temperature | -40ºC (-40ºF) to 85ºC (185ºF) | |

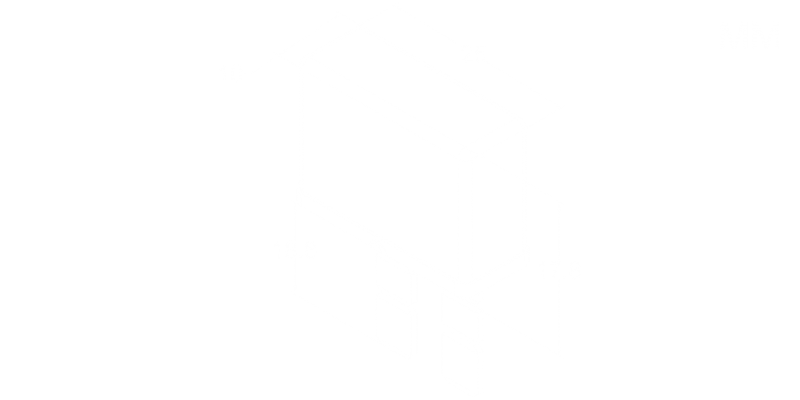

| Dimension |
Length: 25.0 Width: 17.8 Height: 28.8 Unit: mm |
|
| Weight | 6 g | |
| RoHS | Y | |
| Standard Pack | 1500 | |
| Body | Aluminium | |
Length: 25.0
Width: 17.8
Height: 28.8
Unit: mm
