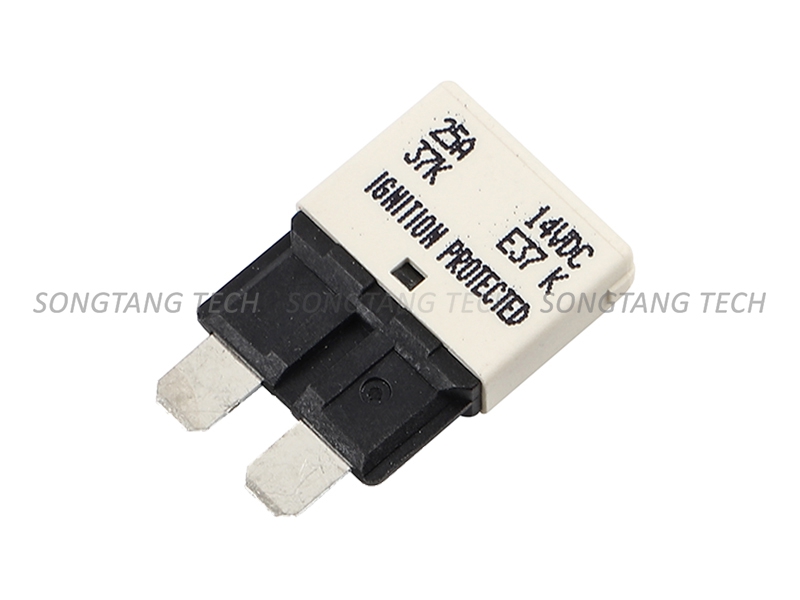

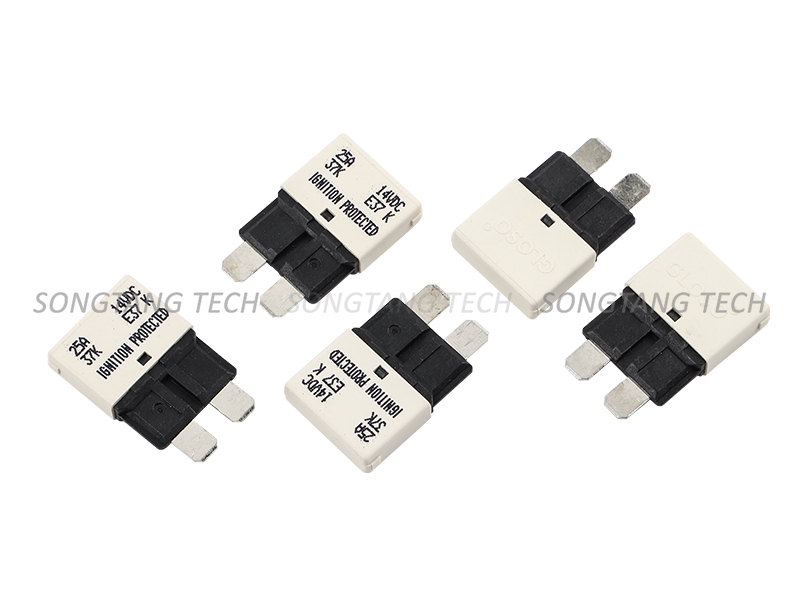

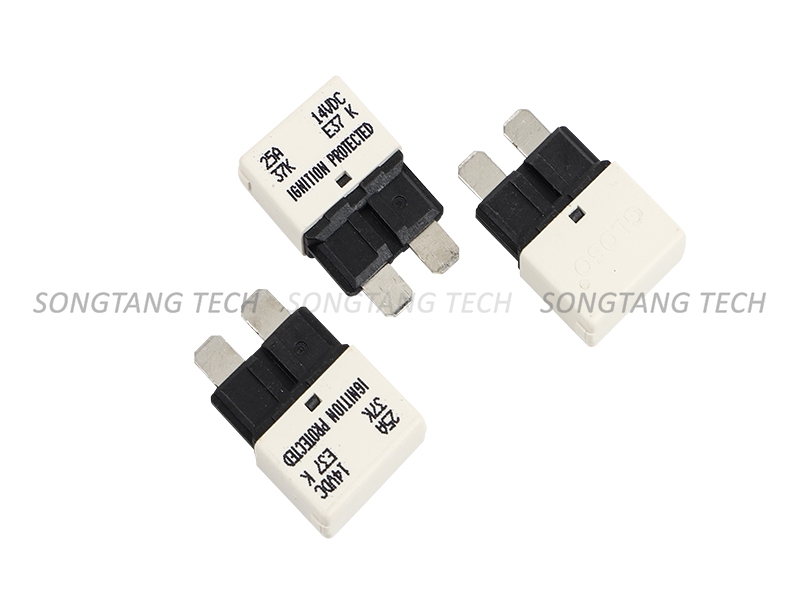

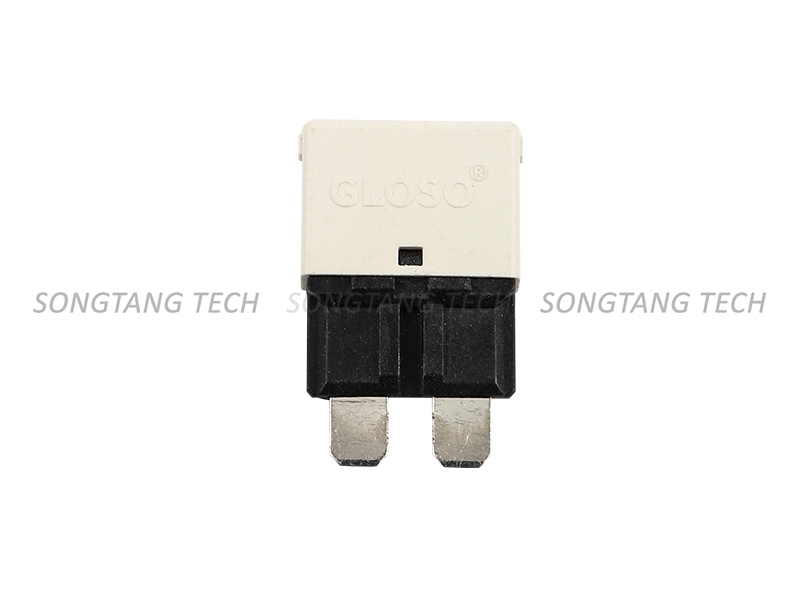

E37-25A |
||
|---|---|---|
| Part Number | E37-25-00 | |
| Description |
ATC Circuit Protector (Breaker) (Low Profile) 25A, 14Vdc T1, Auto Reset Compatible with ATC fuse blocks Complies with SAE J553 and SAE J1171 for ignition protection |
|
| Family | Thermal Circuit Protector (Breaker) | |
| Category | E37 | |
| Series | E37 | |
| Voltage | 14Vdc | |
| Rated Current | 25A | |
| Reset Type | T1, Auto Reset | |
| Operating Temperature | -40ºC (-40ºF) to 85ºC (185ºF) | |
| Interrupt Capacity | 2,000 Amp @ 28Vdc | |

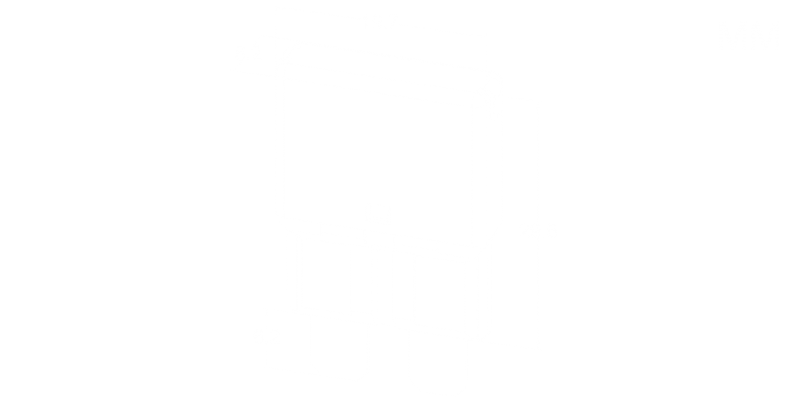

| Dimension |
Length: 19.7 Width: 6.2 Height: 29.5 Unit: mm |
|
| Weight | 5 g | |
| RoHS | Y | |
| Standard Pack | 1500 | |
| Regulatory Compliance Summary | SAEJ 553; SAEJ 1171 (Ignition Protected); UL1500 | |
| Termination | 5.2mm wide blades (ATC Type) | |
| Storage Temperature | -40ºC (-40ºF) to 125ºC (260ºF) | |
Length: 19.7
Width: 6.2
Height: 29.5
Unit: mm
