E39 - Switch Only |
||
|---|---|---|
| Part Number | E39-99 | |
| Description |
Small Push Switch Protect Automotive Power On-Off |
|
| Family | Thermal Circuit Protector (Breaker) | |
| Category | E39 | |
| Series | E39 | |
| Voltage | 28Vdc | |
| Rated Current | max to 30Amp | |
| Reset Type | T3, Manual Reset | |
| Operating Temperature | -40ºC (-40ºF) to 85ºC (185ºF) | |
| Interrupt Capacity | 2,000 Amp @ 28Vdc | |

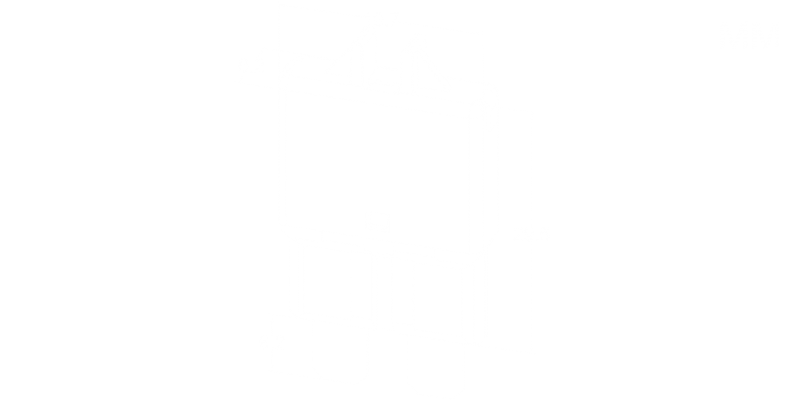

| Dimension |
Length: 19.7 Width: 6.2 Height: 29.5 Unit: mm |
|
| Weight | 5 g | |
| RoHS | Y | |
| Standard Pack | 1500 | |
| Regulatory Compliance Summary | SAEJ 553; SAEJ 1171 (Ignition Protected); UL1500 | |
| Termination | 5.2mm wide blades (ATC Type) | |
| Storage Temperature | -40ºC (-40ºF) to 125ºC (260ºF) | |
Length: 19.7
Width: 6.2
Height: 29.5
Unit: mm
E39-03A
Rated Current: 3A
Voltage: 32Vdc
Reset Type: T3, Manual Reset
E39-05A
Rated Current: 5A
Voltage: 32Vdc
Reset Type: T3, Manual Reset
E39-7.5A
Rated Current: 7.5A
Voltage: 32Vdc
Reset Type: T3, Manual Reset
E39-15A
Rated Current: 15A
Voltage: 32Vdc
Reset Type: T3, Manual Reset
E39-06A
Rated Current: 6A
Voltage: 32Vdc
Reset Type: T3, Manual Reset
E39-30A
Rated Current: 30A
Voltage: 32Vdc
Reset Type: T3, Manual Reset
E39 - Switch Only
Rated Current: max to 30Amp
Voltage: 28Vdc
Reset Type: T3, Manual Reset
E39-25A
Rated Current: 25A
Voltage: 32Vdc
Reset Type: T3, Manual Reset
