E72 |
||
|---|---|---|
| Part Number | E72-15-4-00 | |
| Description |

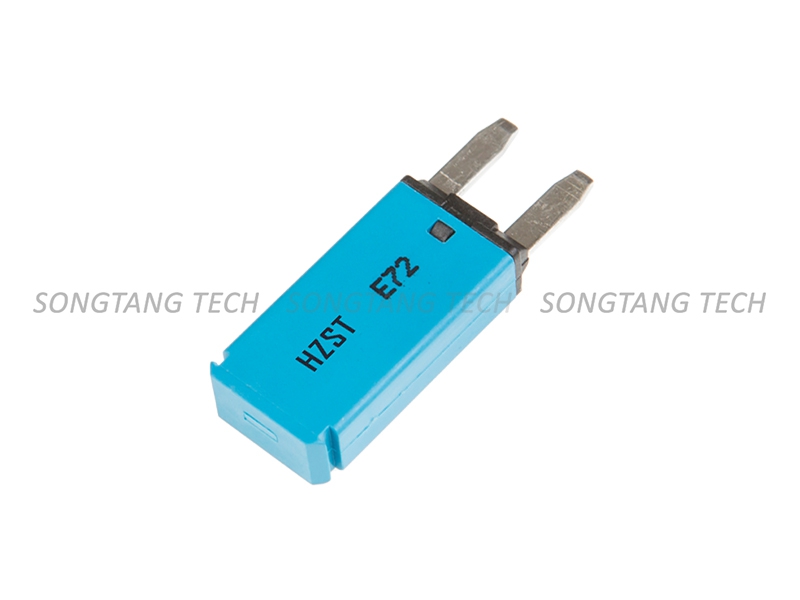

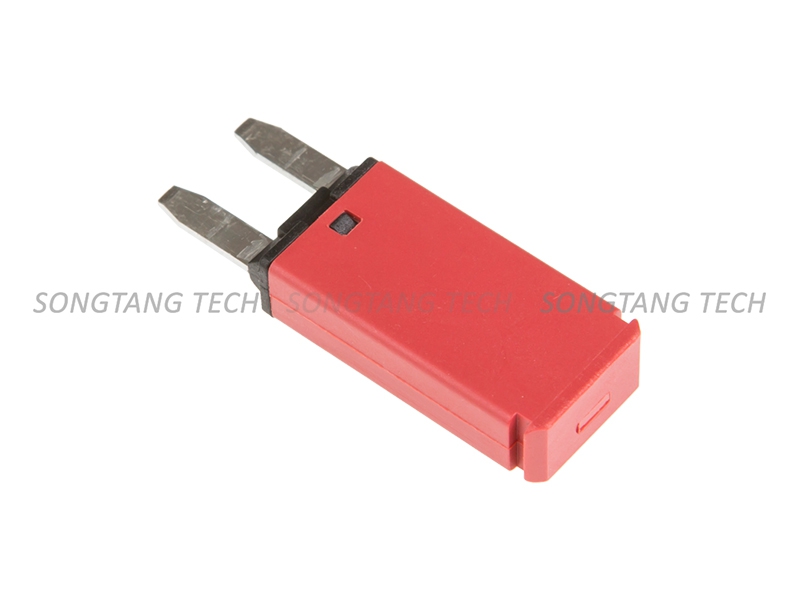

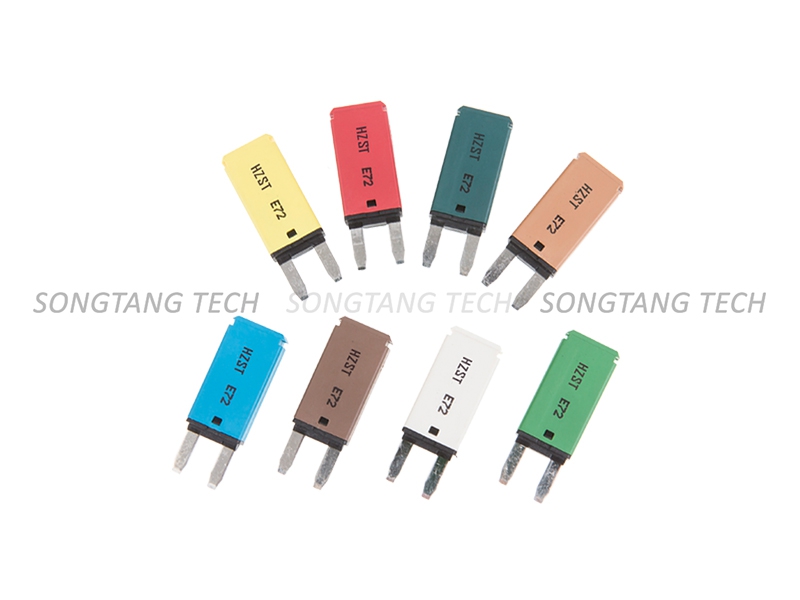

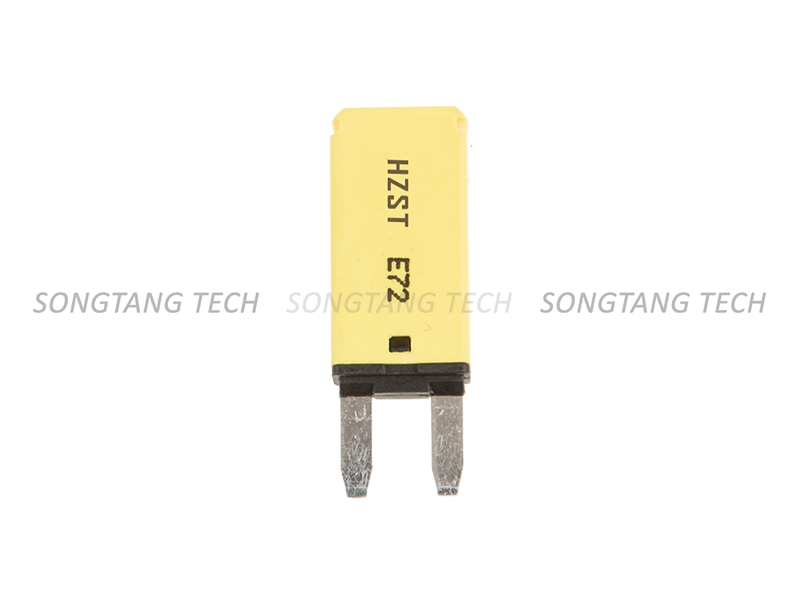

E72 Mini Circuit Protector (Breaker) T2, Modified Reset Compatible with 280 Type fuse blocks using 0.32" (8.1mm) centerline spacing Type 2, ATM Footprint Circuit Protector (Breaker) |
|
| Family | Thermal Circuit Protector (Breaker) | |
| Category | E7 | |
| Series | E72 | |
| Voltage | 14Vdc | |
| Rated Current | 15A | |
| Operating Temperature | -40ºC (-40ºF) to 85ºC (185ºF) | |
| Dimension | 26x12.4x6.4 mm | |
| Weight | 4 g | |
| RoHS | Y | |
| Standard Pack | 1500 | |
| Regulatory Compliance Summary | SAEJ553 | |
| Termination | 0.32" (8.1mm) centerline spacing (Mini Type) | |
| Body | UL-Rated 94V0 Themoplastic Housing | |
| Storage Temperature | -40ºC (-40ºF) to 125ºC (260ºF) | |

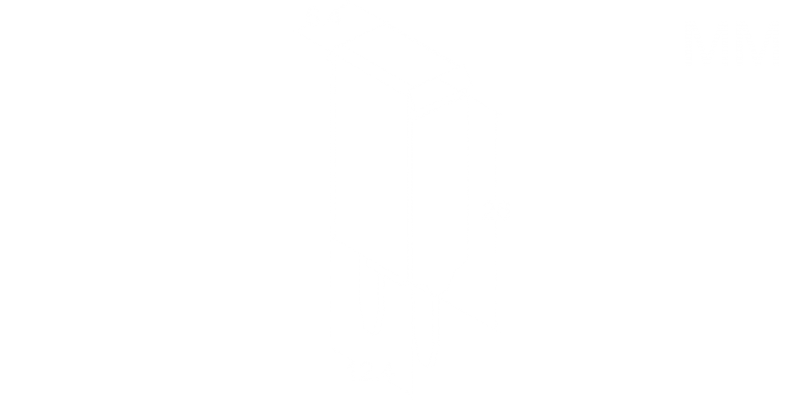

26x12.4x6.4 mm
