E73 |
||
|---|---|---|
| Part Number | E73-20-8-00 | |
| Description |

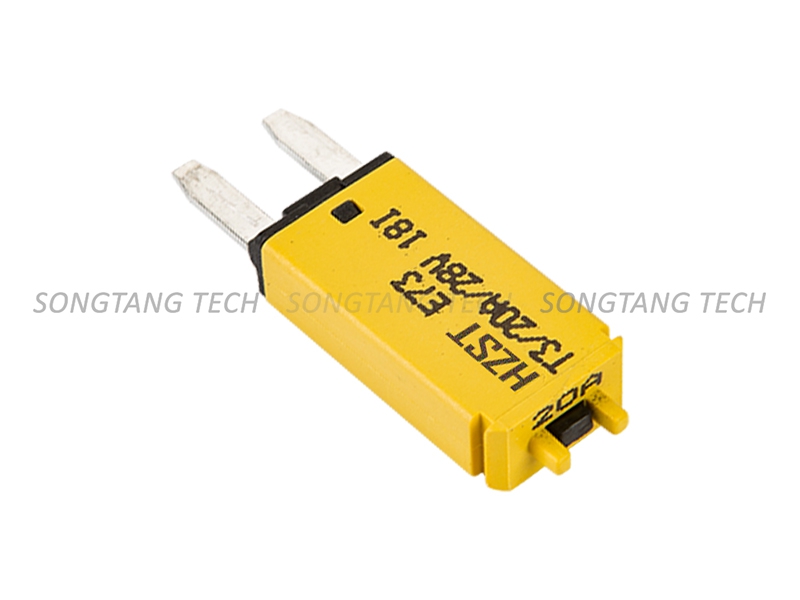

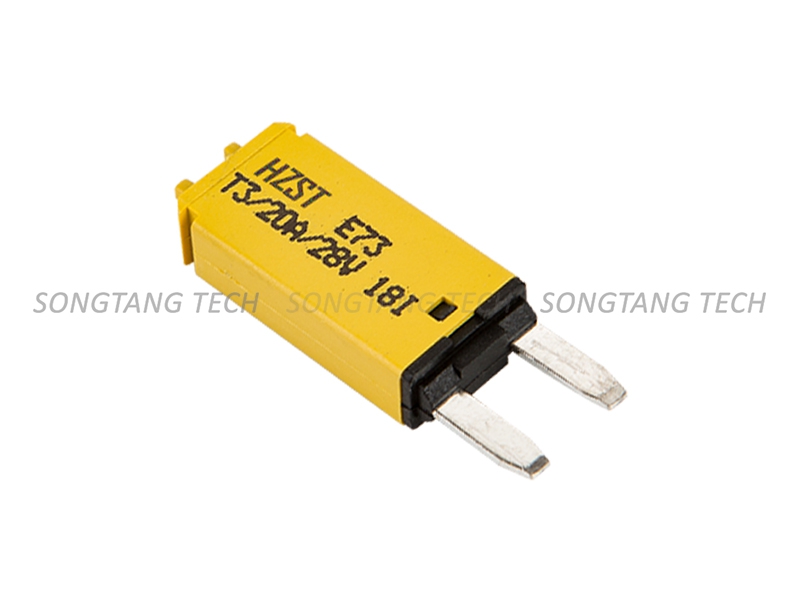

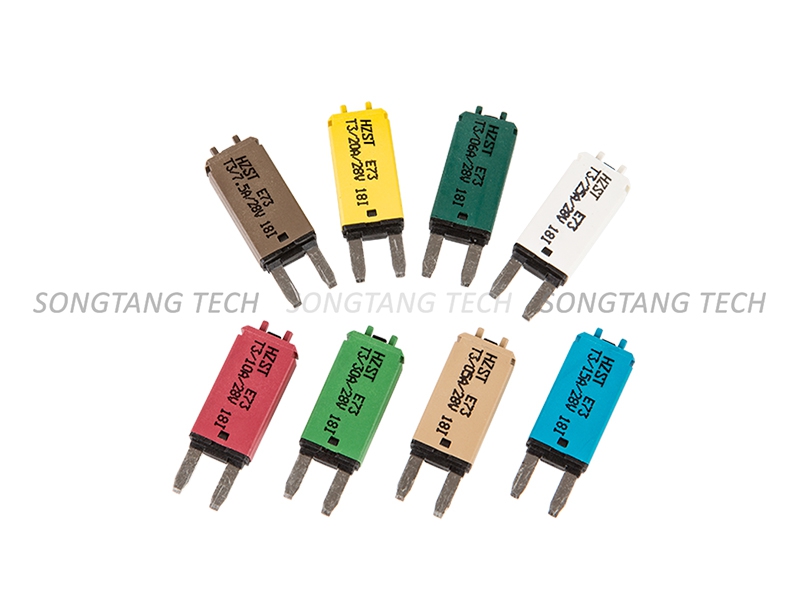

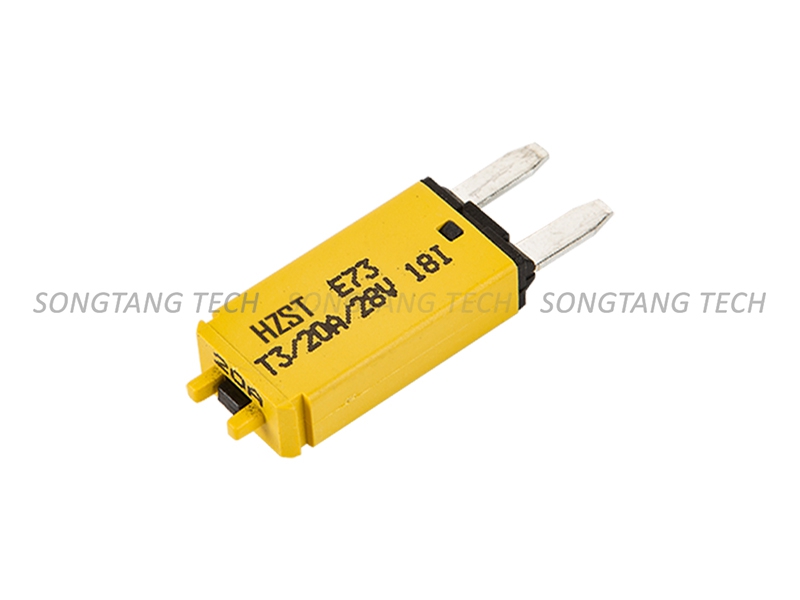

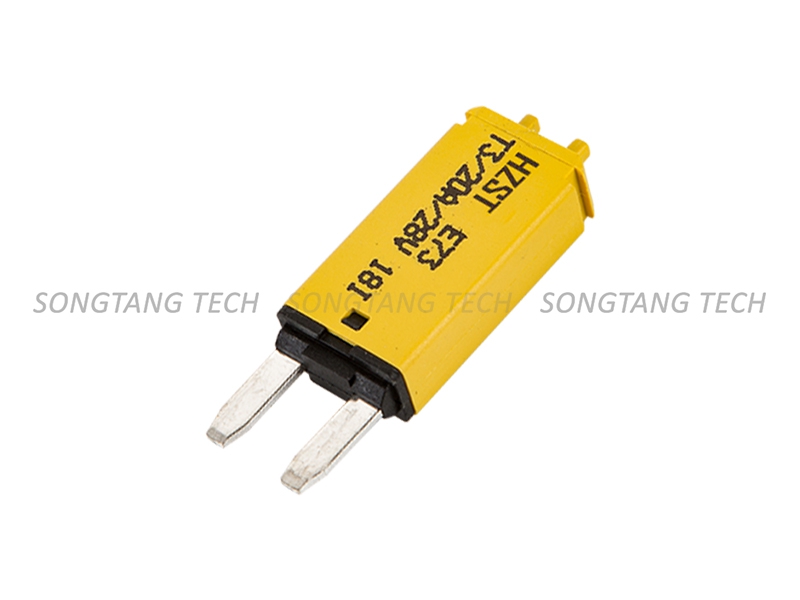

E73 Mini Circuit Protector (Breaker) T3, Manual Reset Compatible with 280 Type fuse blocks using 0.32" (8.1mm) centerline spacing Type 3, ATM Footprint Circuit Protector (Breaker) |
|
| Family | Thermal Circuit Protector (Breaker) | |
| Category | E7 | |
| Series | E73 | |
| Voltage | 28Vdc | |
| Rated Current | 20A | |
| Reset Type | T3, Manual Reset | |
| Operating Temperature | -40ºC (-40ºF) to 85ºC (185ºF) | |
| Dimension | 26x12.4x6.4 mm | |
| Weight | 4 g | |
| RoHS | Y | |
| Standard Pack | 1500 | |
| Regulatory Compliance Summary | SAE J553 | |
| Termination | 0.32" (8.1mm) centerline spacing (Mini Type) | |
| Body | UL-Rated 94V0 Themoplastic Housing | |
| Storage Temperature | -40ºC (-40ºF) to 125ºC (260ºF) | |
26x12.4x6.4 mm
E73 - Switch Only
Rated Current: max to 30Amp
Voltage: 28Vdc
Reset Type: T3, Manual Reset
E72
Rated Current: 15A
Voltage: 14Vdc
E73
Rated Current: 20A
Voltage: 28Vdc
Reset Type: T3, Manual Reset
E71
Rated Current: 10A
Voltage: 14Vdc
Reset Type: T1, Auto Reset
E73L
Rated Current: 10A
Voltage: 14Vdc
Reset Type: T3, Manual Reset
