E83 |
||
|---|---|---|
| Part Number | E83-30-41-01 | |
| Description |

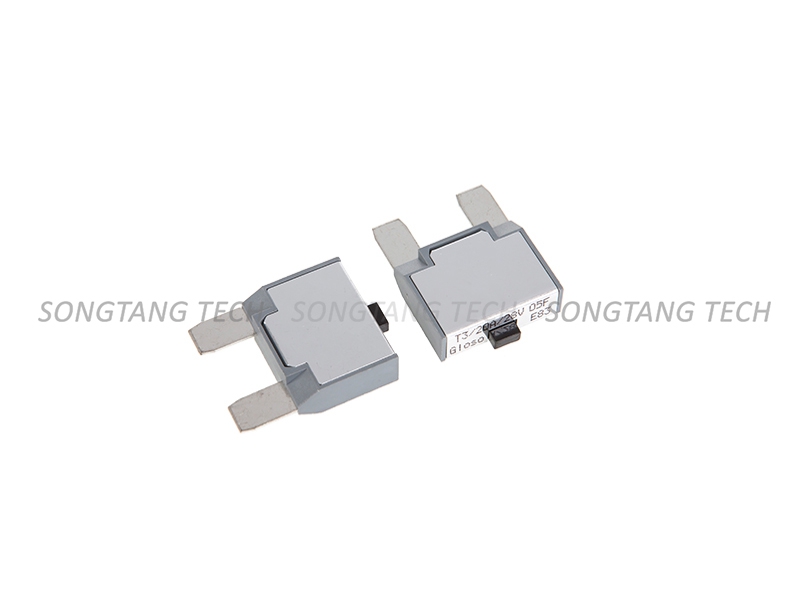

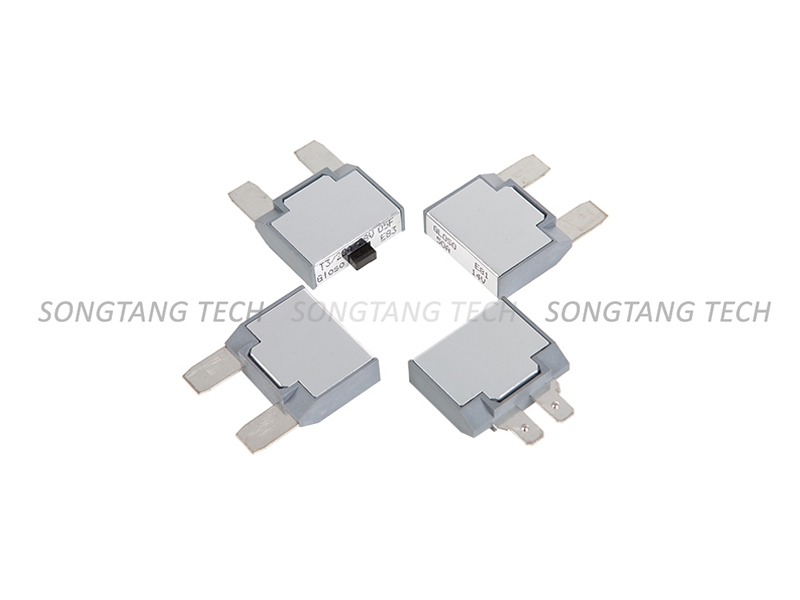

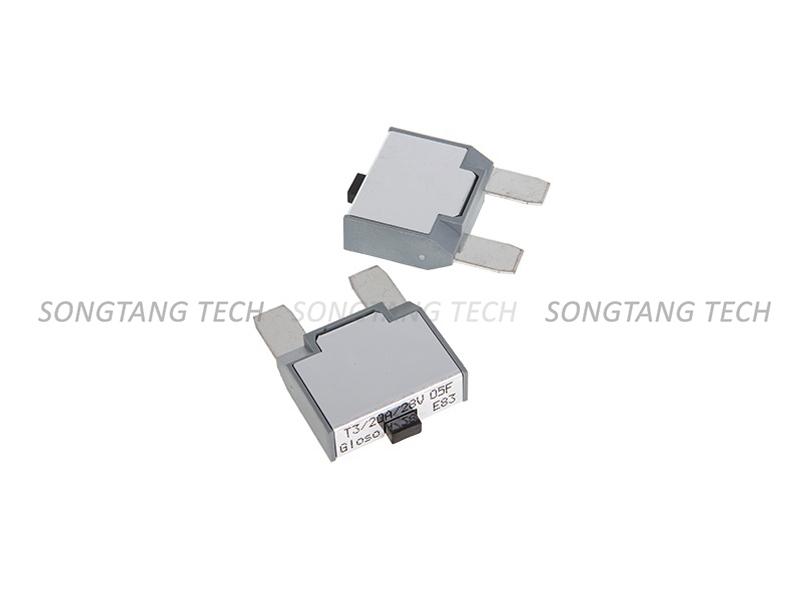

E83 MAXI Circuit Protector (Breaker) T3, Manual Reset Compatible with fuse blocks accepting MAXI or ATC blade fuses |
|
| Family | Thermal Circuit Protector (Breaker) | |
| Category | E8 | |
| Series | E83 | |
| Voltage | 14Vdc/28Vdc | |
| Rated Current | max to 50Amp | |
| Reset Type | T3, Manual Reset | |
| Operating Temperature | -40ºC (-40ºF) to 85ºC (185ºF) | |
| Dimension |
Length: 29.2 Width: 23.37 Height: 9.1 Unit: mm |
|
| RoHS | Y | |
| Standard Pack | 1000 | |
| Regulatory Compliance Summary | SAE J553, CE | |
| Termination | Compatible with fuse blocks accepting MAXI or ATC blade fuses | |
| Body | UL-Rated 94V0 Thermoplastic | |
| Storage Temperature | -40ºC (-40ºF) to 125ºC (260ºF) | |
Length: 29.2
Width: 23.37
Height: 9.1
Unit: mm
