E88 |
||
|---|---|---|
| Part Number | E88-30-45-01 | |
| Description |

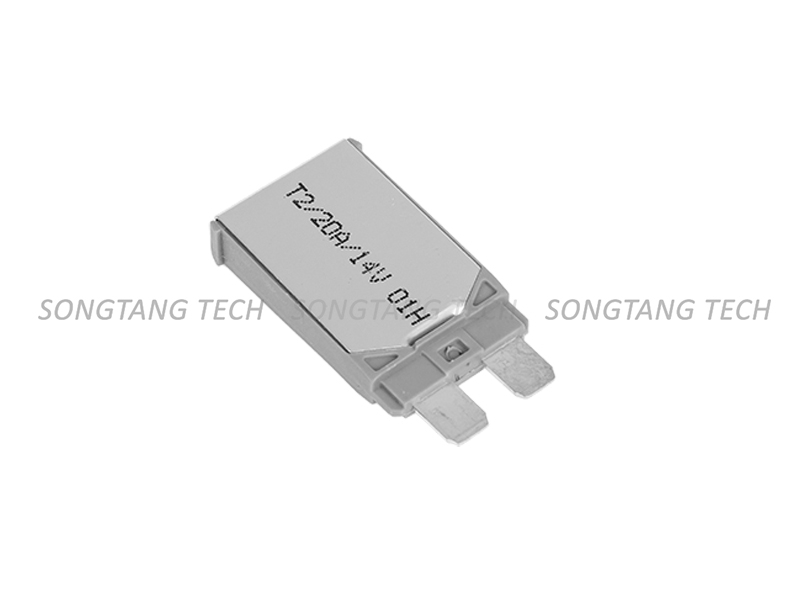

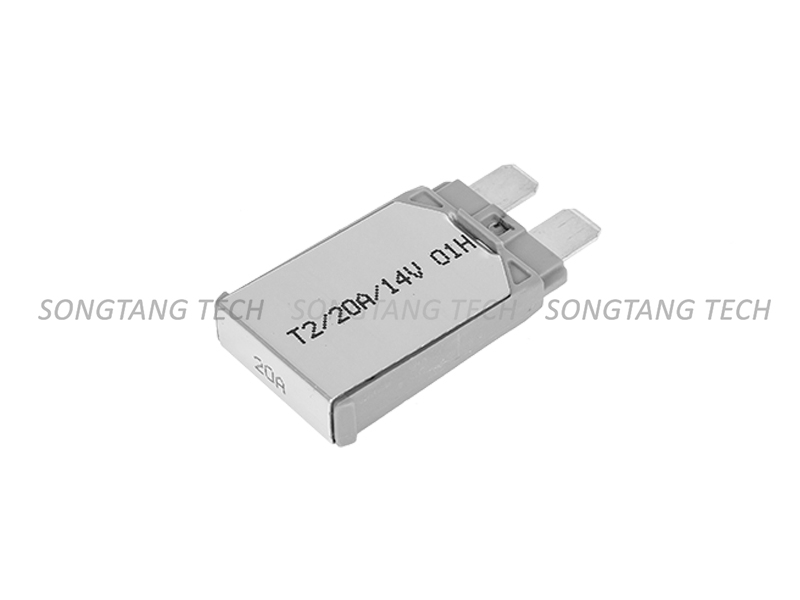

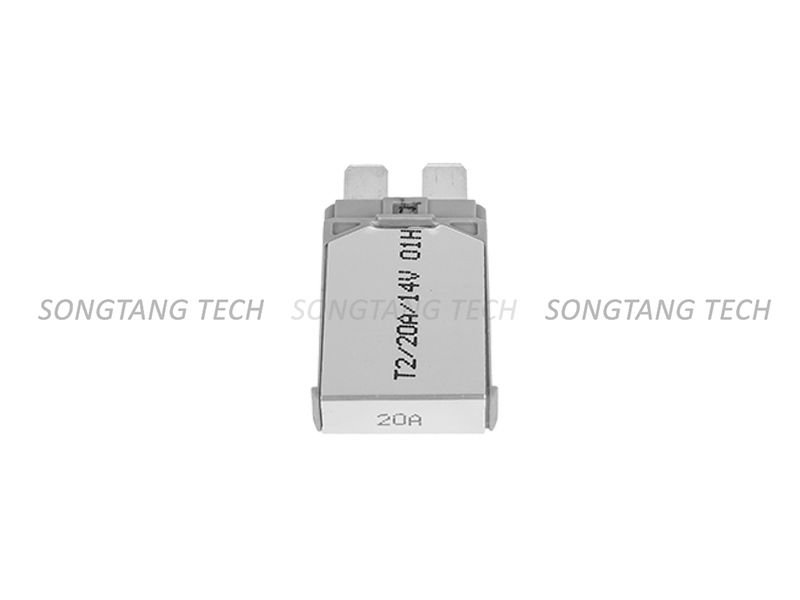

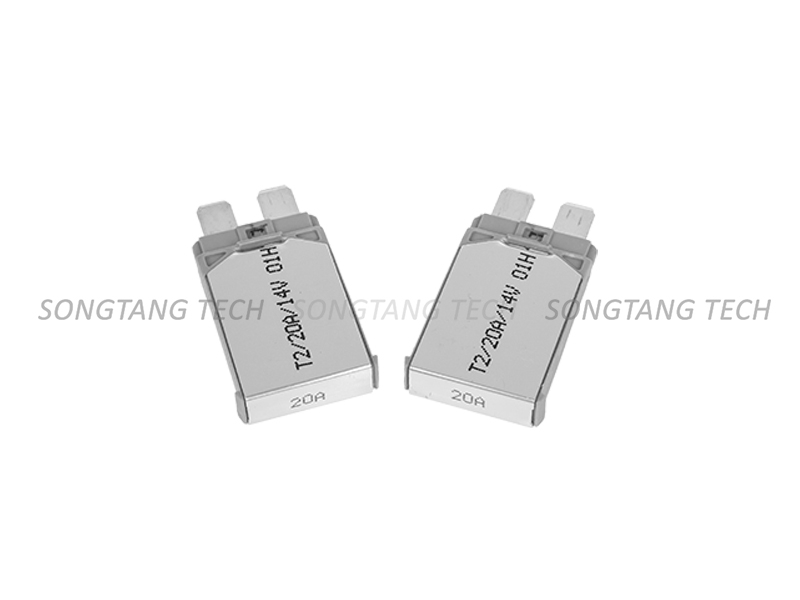

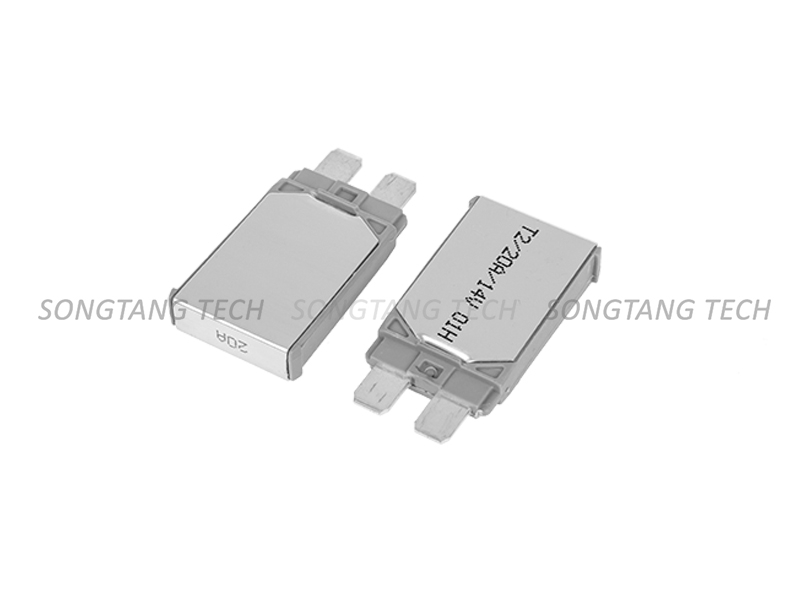

E88 MAXI Circuit Protector (Breaker) T2, Modified Reset Compatible with fuse blocks accepting MAXI or ATC blade fuses |
|
| Family | Thermal Circuit Protector (Breaker) | |
| Category | E8 | |
| Series | E88 | |
| Voltage | 14Vdc | |
| Rated Current | max to 30Amp | |
| Reset Type | T2, Modified Reset | |
| Operating Temperature | -40ºC (-40ºF) to 85ºC (185ºF) | |
| Dimension |
Length: 31.5 Width: 19 Height: 6.5 Unit: mm |
|
| RoHS | Y | |
| Standard Pack | 1000 | |
| Regulatory Compliance Summary | SAE J553, ISO 10924, CE | |
| Termination | Compatible with fuse blocks accepting MAXI or ATC blade fuses | |
| Storage Temperature | -40ºC (-40ºF) to 125ºC (260ºF) | |
Length: 31.5
Width: 19
Height: 6.5
Unit: mm
